Storing Data on a DVD
DVDs are of the same diameter and thickness as CDs, and they are made using some of the same materials and manufacturing methods. Like a CD, the data on a DVD is encoded in the form of small pits and bumps in the track of the disc.
A DVD is composed of several layers of plastic, totaling about 1.2 millimeters thick. Each layer is created by injection molding polycarbonate plastic. This process forms a disc that has microscopic bumps arranged as a single, continuous and extremely long spiral track of data.
Once the clear pieces of polycarbonate are formed, a thin reflective layer is sputtered onto the disc, covering the bumps. Aluminum is used behind the inner layers, but a semi-reflective gold layer is used for the outer layers, allowing the laser to focus through the outer and onto the inner layers. After all of the layers are made, each one is coated with lacquer, squeezed together and cured under infrared light. For single-sided discs, the label is silk-screened onto the non-readable side. Double-sided discs are printed only on the non-readable area near the hole in the middle. Cross sections of the various types of completed DVDs (not to scale) look like this:
Each writable layer of a DVD has a spiral track of data. On single-layer DVDs, the track always circles from the inside of the disc to the outside. That the spiral track starts at the center means that a single-layer DVD can be smaller than 12 centimeters if desired. You will often read about "pits" on a DVD instead of bumps. They appear as pits on the aluminum side, but on the side that the laser reads from, they are bumps.

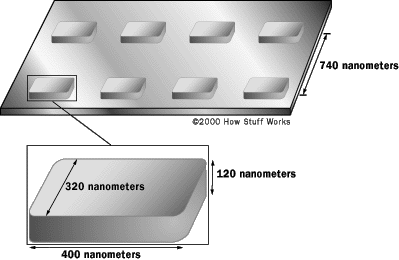

What the image to the right cannot impress upon you is how incredibly tiny the data track is—just 740 nanometers separate one track from the next (a nanometer is a billionth of a meter). And the elongated bumps that make up the track are each 320 nanometers wide, a minimum of 400 nanometers long and 120 nanometers high. The following figure illustrates looking through the polycarbonate layer at the bumps.
You will often read about "pits" on a DVD instead of bumps. They appear as pits on the aluminum side, but on the side that the laser reads from, they are bumps.
The microscopic dimensions of the bumps make the spiral track on a DVD extremely long. If you could lift the data track off a single layer of a DVD, and stretch it out into a straight line, it would be almost 7.5 miles long! That means that a double-sided, double-layer DVD would have 30 miles (48 km) of data! (If you need to backup the data of a DVD, you can try the great Pavtube DVD Copy).
2008 - 04 -24
A DVD is composed of several layers of plastic, totaling about 1.2 millimeters thick. Each layer is created by injection molding polycarbonate plastic. This process forms a disc that has microscopic bumps arranged as a single, continuous and extremely long spiral track of data.
Once the clear pieces of polycarbonate are formed, a thin reflective layer is sputtered onto the disc, covering the bumps. Aluminum is used behind the inner layers, but a semi-reflective gold layer is used for the outer layers, allowing the laser to focus through the outer and onto the inner layers. After all of the layers are made, each one is coated with lacquer, squeezed together and cured under infrared light. For single-sided discs, the label is silk-screened onto the non-readable side. Double-sided discs are printed only on the non-readable area near the hole in the middle. Cross sections of the various types of completed DVDs (not to scale) look like this:
DVD formats
Each writable layer of a DVD has a spiral track of data. On single-layer DVDs, the track always circles from the inside of the disc to the outside. That the spiral track starts at the center means that a single-layer DVD can be smaller than 12 centimeters if desired. You will often read about "pits" on a DVD instead of bumps. They appear as pits on the aluminum side, but on the side that the laser reads from, they are bumps.
What the image to the right cannot impress upon you is how incredibly tiny the data track is—just 740 nanometers separate one track from the next (a nanometer is a billionth of a meter). And the elongated bumps that make up the track are each 320 nanometers wide, a minimum of 400 nanometers long and 120 nanometers high. The following figure illustrates looking through the polycarbonate layer at the bumps.
The microscopic dimensions of the bumps make the spiral track on a DVD extremely long. If you could lift the data track off a single layer of a DVD, and stretch it out into a straight line, it would be almost 7.5 miles long! That means that a double-sided, double-layer DVD would have 30 miles (48 km) of data! (If you need to backup the data of a DVD, you can try the great Pavtube DVD Copy).
2008 - 04 -24
